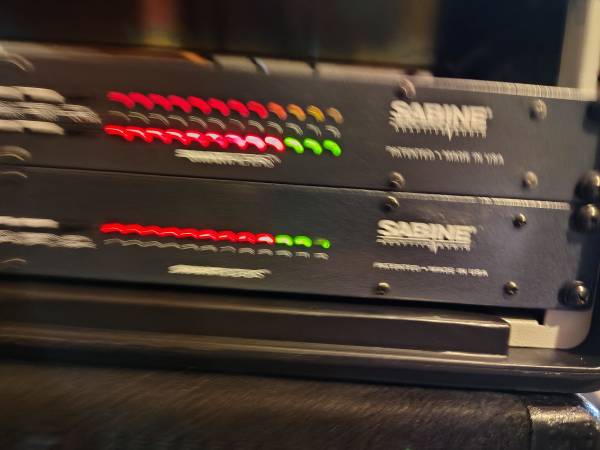

Sabine FBX 1200 Feedback Exterminator (FBX1200) Made in USA - $80 (HOLDEN)
QR Code Link to This Post
More About this Item
The FBX1200 from Sabine is a single channel, twelve band digital notch filter feedback suppressor. The unit features SMARTFilter technology that can automatically, speedily, and precisely locate the exact frequency band that is feeding back and remove it.
The power of the FBX1200 lays in its ability to control feedback during the program, not just at setup time. If feedback occurs during a crucial moment of the show, the FBX places a filter that only eliminates the feedback, without adversely affecting the overall sound.
Using a sophisticated, patented analysis algorithm that scans the harmonic content of the program material, the unit is able to very accurately discern feedback from simply loud program material. Once any of the potential 20,000 places that feedback can occur are analyzed, it centers the filter exactly on the offending frequency with one-Hertz resolution.
A multi-color filter display shows exactly which filters are fixed and which are programmed to function dynamically. Set-up can be down in as little as thirty seconds, with the whole process being so quiet that it is almost unnoticeable.
Twelve-filter feedback eliminator with SMARTFilter technology
Super-fast automatic feedback control
Accurately distinguishes music content from feedback and places filters with 1Hz resolution
Transparent operation leaves the program material clear and untouched
Provides greater overall gain before feedback
Timed or manual/dynamic filter reset
Three color LED filter display
24-bit digital resolution
Sabine FBX1200-U Specs
Filter Type
Digital Notch
Frequency Bands
12, fixed or dynamic
Bandwidth
1/10 or 1/5 octave, constant Q, user-selectable
Number of Channels
1
Inputs
1 x XLR
1 x 1/4" TRS phone
Output
1 x XLR
1 x 1/4" TRS phone
Maximum Input Level
Balanced +27dBV peak
Unbalanced +21dBV peak
Maximum Output Level
Balanced +27dBV peak
Unbalanced +21dBV peak
Frequency Response
20Hz to 20kHz, +/-0.3dB
Dynamic Range
>105dB
Noise
SNR: >100dB
Dimensions
19" x 6 1/4" x 1 3/4"
Weight
8 lbs
Specialties
Time required to find and eliminate feedback is 0.4 seconds, typical @ 1KHz
